THINKCAR MUCAR 563HD Heavy-duty Diagnostic Scanner, Supports Full-system Diagnostics, 71 Truck Brands, 8 Maintenance Reset Functions
ITEMS STOCK IN EU, CLICK HERE
ITEMS STOCK IN UK, CLICK HERE
ITEMS STOCK IN US, CLICK HERE
We are interested in discussing potential drop-ship services or cooperation opportunities with you.
Email: Sales@OBDII365.com
WhatsApp: +86 18350207975
Product Description
- Supports 71 truck brands.
- Full system diagnostics and 8 maintenance reset Functions.
- 2 years free update.

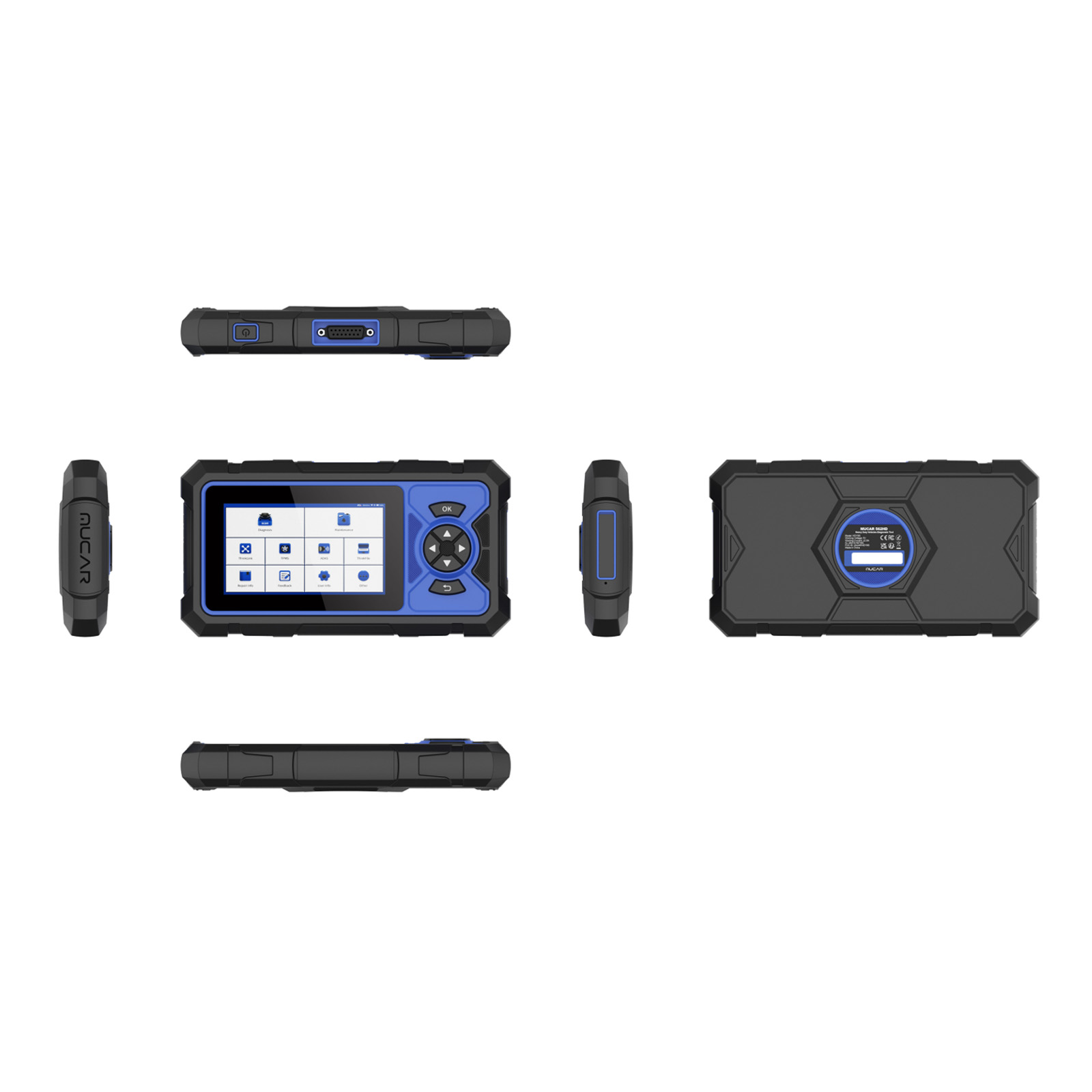

THINKCAR MUCAR 563HD Heavy-duty Diagnostic Scanner
Introduction:
THINKCAR MUCAR 563HD is a professional diagnostic tool specifically designed for heavy-duty trucks and commercial vehicles. It covers 71 truck brands, supports full-system diagnostics, and offers 8 maintenance reset functions. Equipped with a 5-inch screen and a wired connection for stable and reliable data transmission, it also comes with 2 years of free updates to keep the device up to date.
The kit includes 3 OBD1 adapters (OBD-9, OBD-6, and CAT-9) for broader vehicle compatibility. An ideal entry-level heavy-duty diagnostic scanner for repair shops looking to expand into commercial vehicle maintenance.
Mucar 563HD Features:
Specialized Heavy-duty Truck Diagnostics
Covers 71 Truck Brands
Full-system Basic Functions
8 Maintenance Reset Functions
5-inch Display Screen
Wired Connection
2 Years of Free Updates
Software Functions:
Operating System: Android 8.1
Diagnostic Functions: Full system basic functions
Diagnostic Software: 71 heavy-duty truck models software
Diagnostic Protocols: SAE-J1850 PWM, SAE-J1850 VPW, ISO 9141, ISO-14230-2 ISO, ISO 14230-4 KWP, ISO 15765-4 CAN, J1708, J1939, CANFD
Connection Method: Wired
Online Programming: Not supported
Maintenance Functions: 8 (Oil Maintenance Reset, Injector Coding, Brake Reset, D#P#F Regen, Clutch Matching, Cylinder Cut Out Test, Speed Limit Reset, SCR Reset)
Remote Diagnosis: Not supported
TPMS: Not supported
ADAS: Not supported
Expansion Modules: Not supported
Diagnostic Smart Navigation: Not supported
Diagnostic Topology Map: Not supported

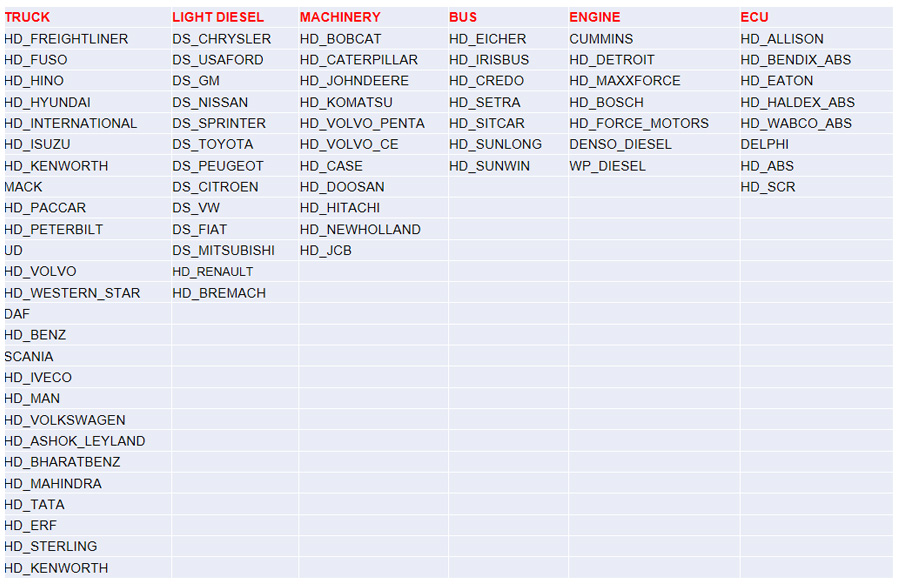

Vehicle Coverage:
Truck:
For FREIGHTLINER, for FUSO, for HINO, for HYUNDAI, for ISUZU, for VOLVO, for IVECO, for MAN...
Light Diesel：
For CHRYSLER, for GM, for NISSAN, for TOYOTA, for VW, for FIAT, for RENAULT...
Machinery:
For Bobcat, for for for for for
Bus:
For EICHER, for IRISBUS, for CREDO, for SETRA, for SITCAR, for SUNLONG, for SUNWIN
Engine:
For CUMMINS, for DETROIT, for MAXXFORCE, for BOSCH, for DENSO...
ECU:
For ALLISON, for EATON for WABCO for DELPHI, for HALDEX...
Specifications:
Screen size: 5 inches
Resolution: 854×480
Processor: RK3326S, quad-core Cortex-A35, 1.6GHz (Y9S)
RAM: 2GB
ROM: 64GB
Expandable memory: Supported
Battery: 3150mAh / 3.8V
Camera: None
Bluetooth: Bluetooth 5.0
Wi-Fi: 2.4G/5G (dual-band)
Speaker: None
Microphone: None
Buttons: Power on/off

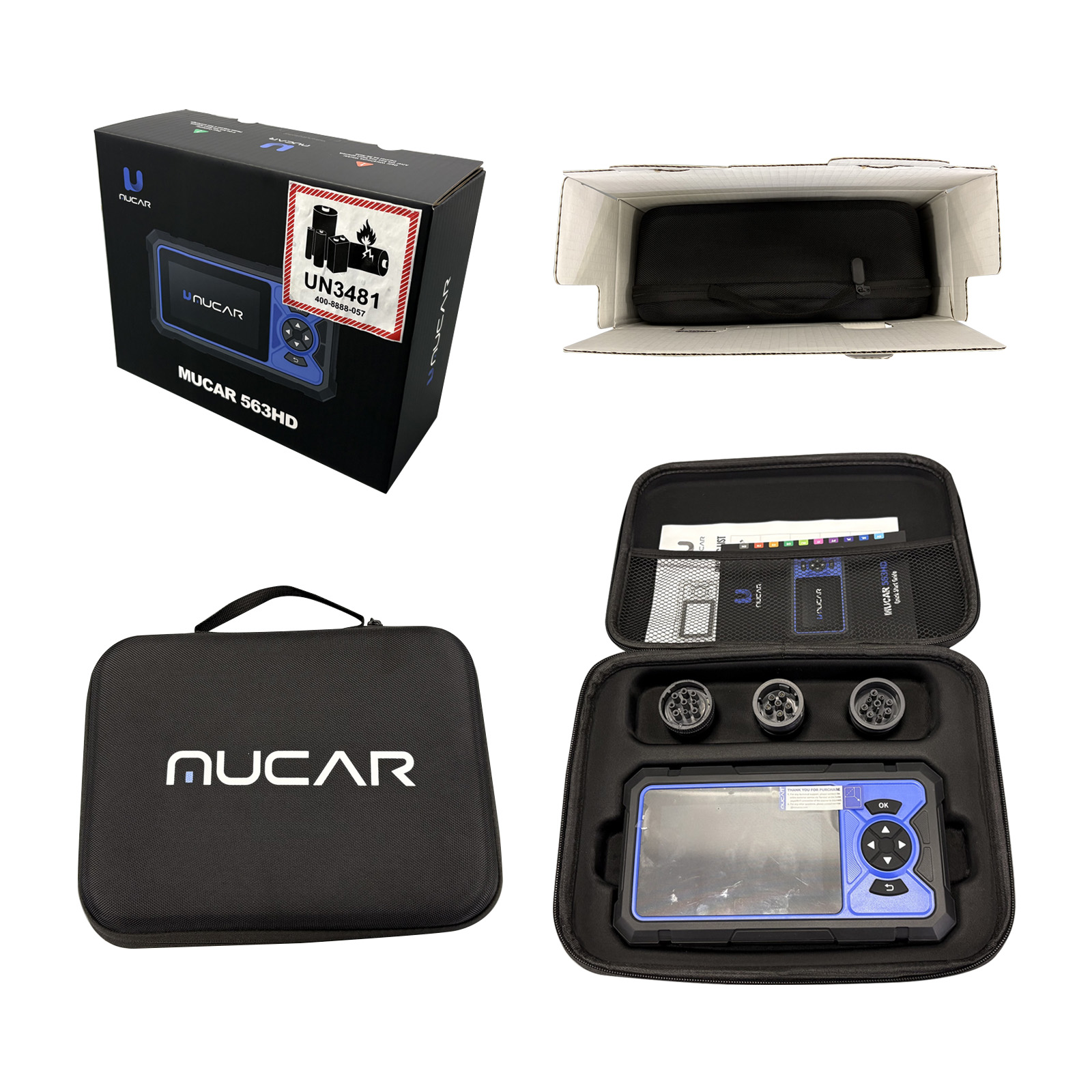

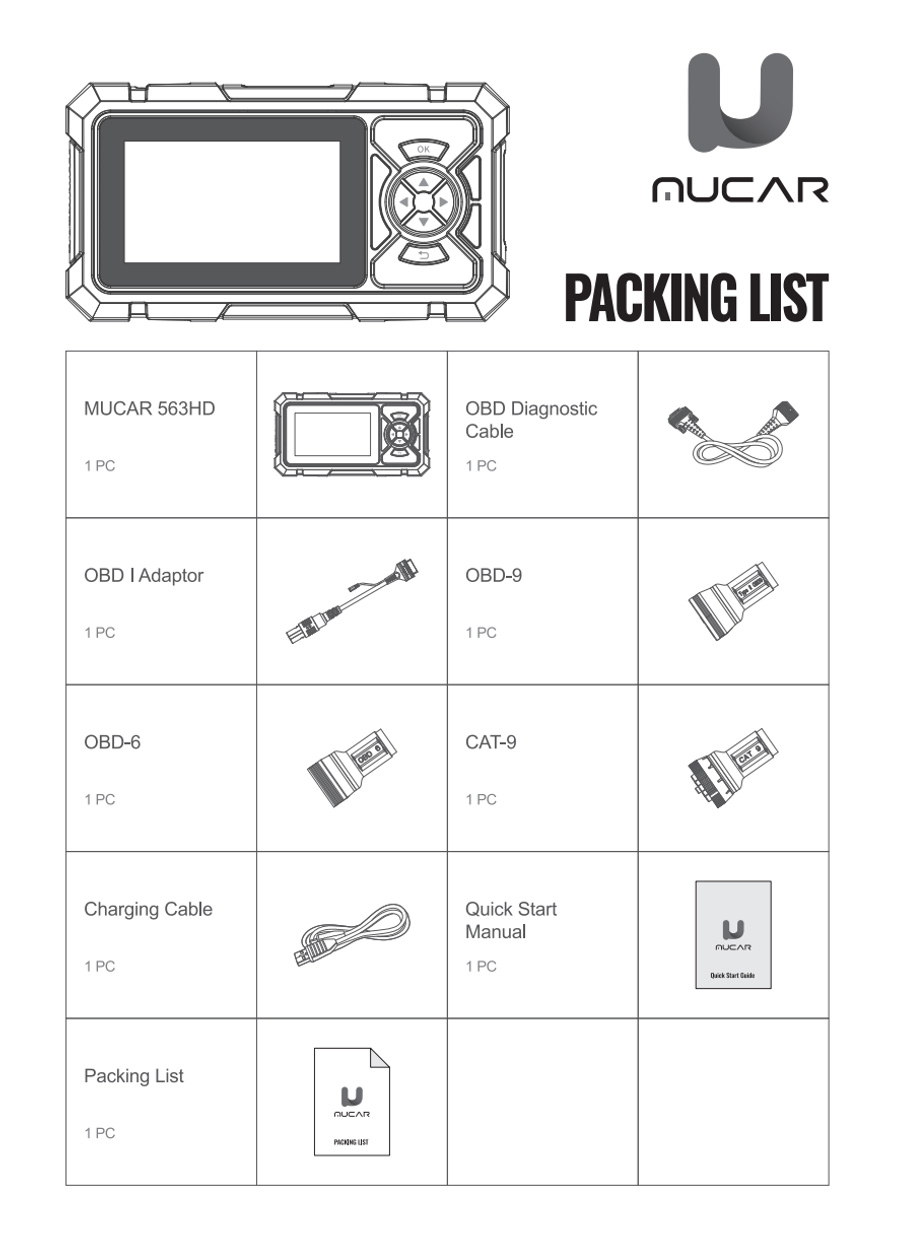

Package includes:
1pc x MUCAR 563HD Tablet
1pc x Diagnostic Cable
1pc x OBDI Adapter Cable
1pc x OBD-9 Adapter
1pc x OBD-6 Adapter
1pc x CAT-9 Adapter
1pc x Charging Cable
