OBDSTAR X300 Pro3 Program Ford Transit 2009 key
Here is the step by step instruction on programming new key on Ford Transit 2009 via OBD2 by using OBDSTAR X300 Pro3 Key Master auto key programmer. Progress done within 2 minutes, super easy.
Connect OBDSTAR Key Master with vehicle via OBD socket. Power on the key programmer.
Note: The OBDSTAR Key Master in green case is exactly the same as X300 Pro3 in orange case.

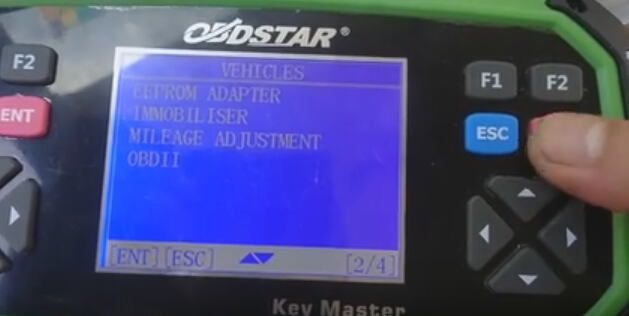

Select VEHICLES
Select IMMOBILISER
Select vehicle brand: FORD/LINCOLN
Check vehicle software version
Initializing
Authorizing
Communicating

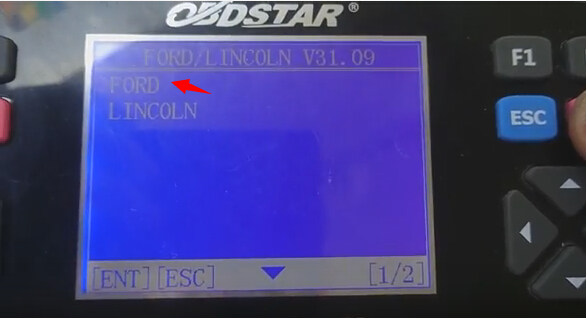

Select Car make:FORD
Select Car region, here we tested a China Ford
Select program key from Immobiliser
Drop down the vehicle list and select Transit
Communicating
Select Program keys function
Turn on the ignition switch
Insert key and switch ignition on
Program key in progress.
This process does not erase key.
Program success.
Test the new programmed key.
