Second Hand 95% New OBDSTAR P50 Airbag Reset Tool Cover 94 Brands and Over 16400 ECU Part No. by OBD/ BENCH

Product Description

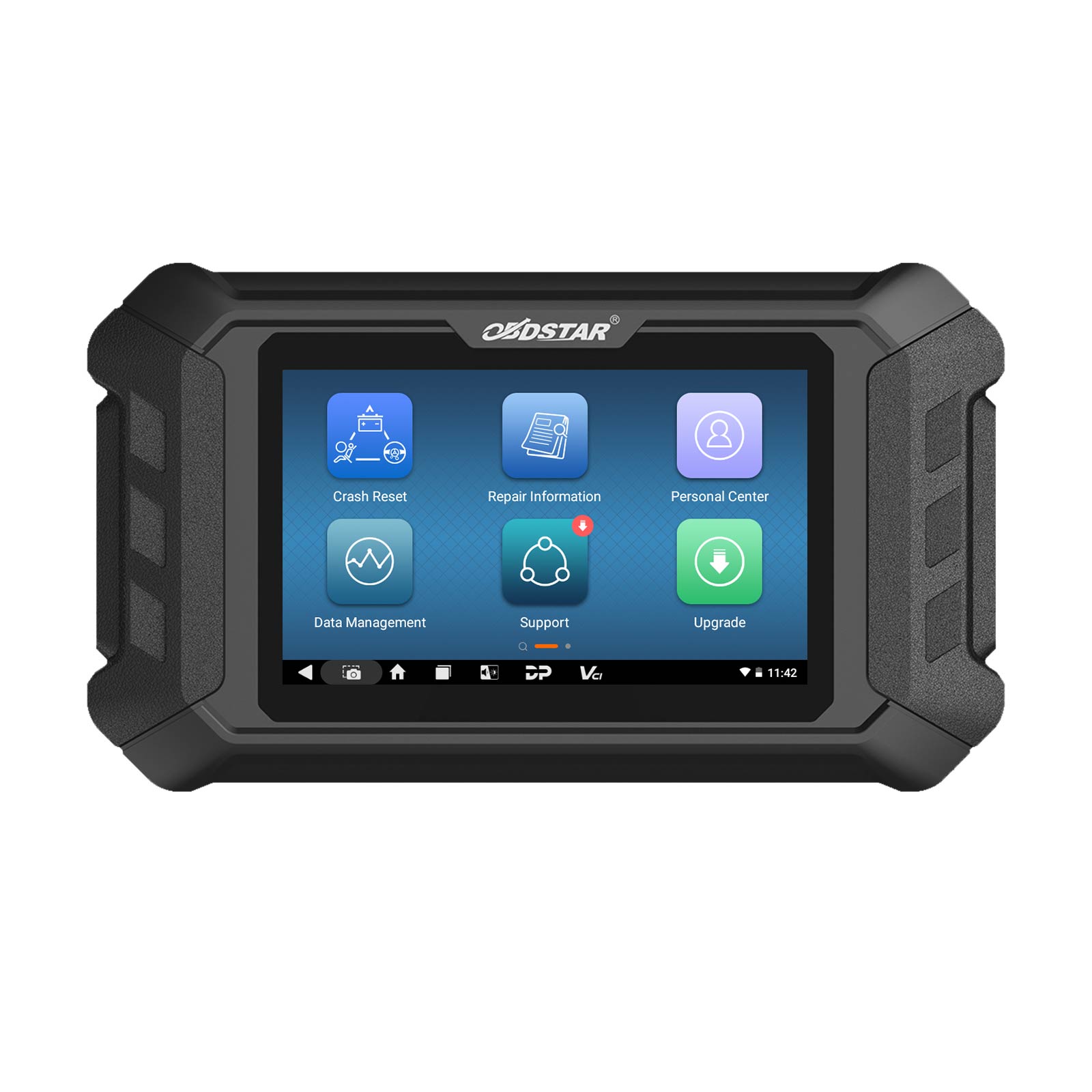

Second Hand OBDSTAR P50 Airbag Reset Tool


• Condition:  90% NEW
• Shipment: Only for customers from USA
• Clearance Sale, No Return.

What is OBDSTAR P50?
OBDSTAR P50 is the new generation of intelligent airbag reset equipment. With powerful functions and wide coverage, it covers over 16400+ ECU part No., some MCU.
OBDSTAR P50 is based on RK3128 quad-core processor, extremely fast and smooth; equipped with 5-inch capacitive touch sensitive screen.
If you have obdstar x300 dp plus or odomaster, you can directly buy OBDSTAR Airbag Reset Kit to get the same SRS coverage as P50.

OBDSTAR P50 Functions:
1. supports one-click airbag reset for 108 brands and over 16400+ ECU part No.
2. supports fuzzy search for ECU part No.
3. contains clear BENCH mode wiring diagram
4. contains powerful and complete description files for fault code
5. Buy Mileage & Oil Light/ Service Reset Authorization, to be able to program all the modules of P50 (same odometer function as Odomaster).
6. Supports English language.  Distributor code: 0086A002. One year free update. No token.
   Update cost is 90USD/year.
7. Supports Hyundai/Kia TC2xxx types, Toyota R7F7016443, R7F7016843 bench airbag reset with CANFD adapter
8. Supports Toyota Lexus steering angle sensor reset function.
9. Supports airbag reset for new Toyota airbag control units with RH850 processor.
10. To write some airbag ECUs, i.e R7F7010643, R7F701A033, you will need MP001 programmer. To reset some RH850 encrypted airbags, you also need MP001+ RH850 kit.
More functions under development

OBDSTAR P50 Airbag Reset List (2025-03)
OBDSTAR P50 Battery Reset List (2025-03)
OBDSTAR P50 Steering Angle Sensor SAS Reset List (2025-03)
OBDSTAR P50 User Manual

Advanced Functions:
Read ECU Information: Read ECU part number, historical frame number, current frame number, collision record.
Read DTC
Erase DTC
Read EEPROM: Read EEPROM data from ECU for backup
Write EEPROM: Write EEPROM data into ECU
Read FLASH
Write FLASH
Write VIN: Write back the correct VIN after executing [Crash Data Clear]
Clear/Erase Crash: Clear ECU crash data
Unlock ECU
...

P004 adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:
1. Programming devices keep in normal communication no matter turn on or off 12V power button;
2. Turn on or off 120Ω resistance at any time for CANBUS ECU;
3. Support 6&14 and 3&11 CANBUS communication at the same time;
4. Support GM Single CAN(GM SCAN);
5. Support K communication;
6. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;
7. DB15 connector can communicate with any OBDII-16 I/O interface.

Package Includes:
1pc x P50 main unit
1pc x main cable
1pc x P004 adapter
1pc x P004 jumper
1pc x 12V 2A charger
View more details
