EU UK US SHIP Autel APB300 + APB131 Adapters for MQB V850 RH850

Product Description

Autel APB300 + APB131 Adapters

Autel APB300 Programmer:

Features:

• Enables “Add Key" Capability for Volkswagen, for Porsche, for Audi, for Seat, for Skoda, for Bentley, and for Lamborghini, MLB and MQB models, no additional adapters needed.
• Compatible with Autel MaxilM IM508 and IM608 series tablets.
• Read lMMO data from a working MLB/MQB key to add new keys-no instrument cluster removal required; simply open the original key.
• Program Autel Volkswagen/Audi-Style IKEY, P/N: IKEYVWЗT(sold separately)
• Program Autel key circuit board (P/N: IKCBAUЗW, IKCBAU4W included), as a replacement for the original Volkswagen Audi Group FOB circuit board.
• Autel APB300 Quick Guide

Note: Autel key and lMMO programming products are designed for professional locksmiths and vehicle security professionals. Please ensure you meet local licensing requirements before purchase.

MaxiIM VAG IMMO Software

V2.60 (Jan. 2026)
Add function
Calculate IMMO data for MQB48 and MLB keys (requires AP300)


Autel APB300 Key Programmer Vehicle Coverage
MQB Vehicle Coverage

Make    Model    Year
Audi    A1    2019-2021
Audi    A3    2013-2021
Audi    Q2    2017-2021
Audi    Q3    2019-2024
Seat    Arona    2018-2021
Seat    Ateca    2017-2021
Seat    Ibiza    2018-2021
Seat    Leon    2017-2021
Seat    Tarraco    2019-2021
Seat    Toledo    2016-2019
Skoda    Fabia    2015-2021
Skoda    Karoq    2018-2021
Skoda    Karoq    2018-2022
Skoda    Kodiaq    2017-2021
Skoda    Octavia    2013-2021
Skoda    Rapid    2013-2021
Skoda    Superb    2015-2022
Skoda    Scala    2019-2022
Volkswagen    Arteon    2017-2021
Volkswagen    Golf    2013-2021
Volkswagen    Passat    2015-2021
Volkswagen    Polo    2018-2021
Volkswagen    Tiguan    2018-2021
Volkswagen    Touran    2016-2022
Volkswagen    Jetta    2018-2021
Volkswagen    Passat    2015-2021
Volkswagen    T-Cross    2018-2021
Volkswagen    T-Roc    2018-2021
Volkswagen    Crafter    2017-2021

MLB Vehicle Coverage

Make    Model    Year
Audi    A4/S4/RS4    2017-
Audi    A5/S5/RS5    2017-
Audi    A6/S6/RS6    2019-
Audi    A7/S7    2019-
Audi    RS7    2021-
Audi    A8/S8    2018-
Audi    RS8    2021-
Audi    A8 EV    2021-
Audi    Q7    2016-
Audi    Q7 EV    2017-
Audi    Q8    2017-
Porsche    Taycan    2019-
Porsche    Panamera    2017-
Porsche    Panamera EV    2017-
Porsche    Cayenne    2018-
Porsche    Cayenne EV    2019-
Porsche    911    2019-
Bentley    Bentayga    2016-
Bentley    Continental GT    2016-
Bentley    Flying Spur    2020-
Bentley    Flying Spur Hybrid    2022-
Bentley    Bentayga Hybrid    2019-
Volkswagen    Touareg    2019-
Lamborghini    Urus

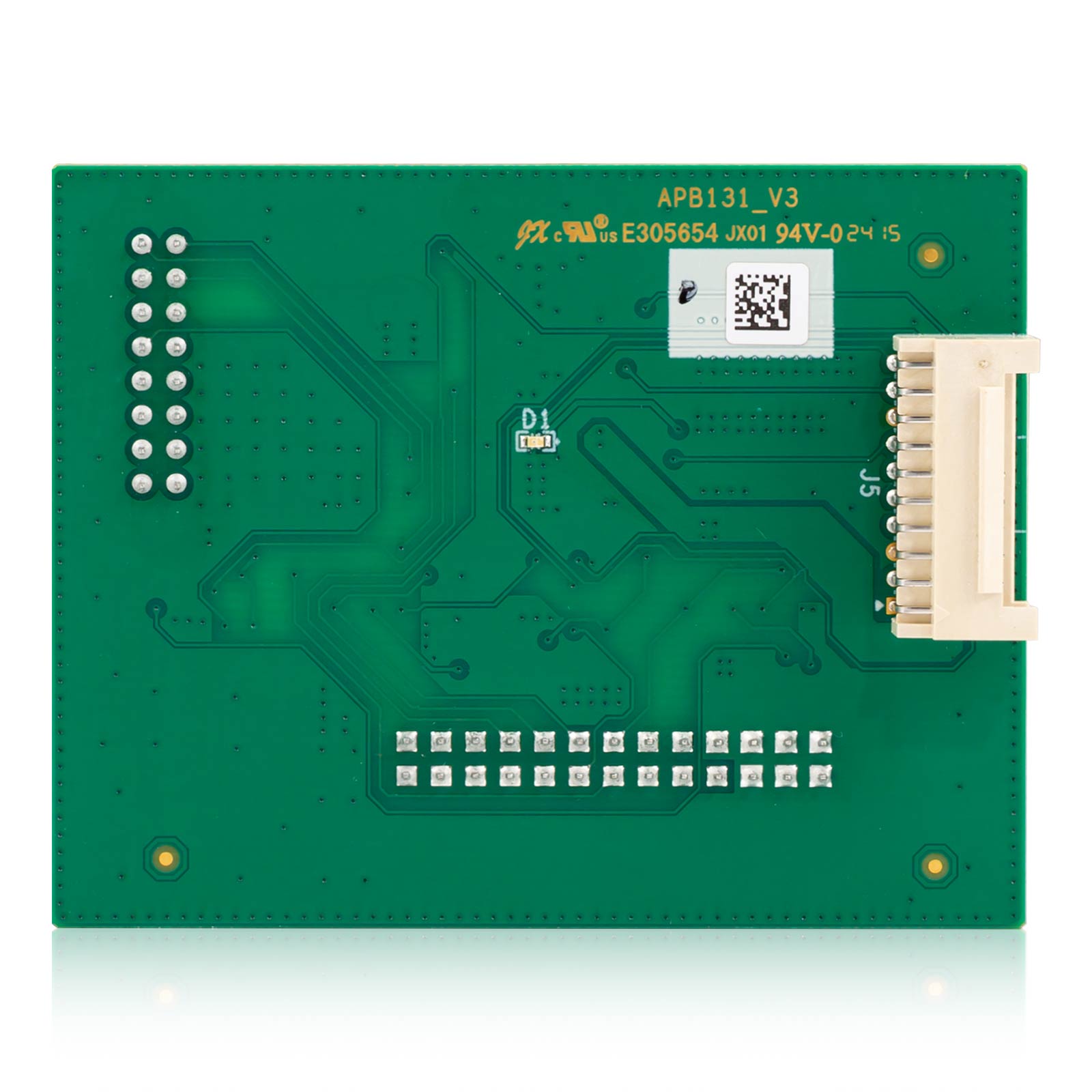

Autel APB131 Adapter

The MaxiIM APB131 Adapter is designed for use with the Autel MaxiIM IM608 and IM508 tablet lines, which use the XP400 or XP400 Pro to Read and Add Keys on select VW/Audi and Nissan vehicles with MQB-V850 and RH850 dashboards, respectively

The XP400PRO & APB131 upgrade unlocks advanced capabilities for MQB-V850/RH850 series vehicles.  That's right, you can finally read IMMO data directly from the MQB-V850/RH850 dashboard!

What does this mean for you?

• Expanded Service Range: Add keys for a wider range of popular makes – VW, Audi, Skoda, and Seat.
• All-Key-Lost Solution: Perform complete key loss programming for Nissan vehicles.
• Streamlined Workflow: Eliminate the need for additional tools or disassembly for IMMO data access.
• for Ford RH850

Highlights

• Used with Autel IM508 IM508S IM608 IM608 Pro (with XP400 Pro), OTOFIX IM1/IM2 with XP1 Pro (not XP1).
• Adds Key for VW MQB NEC35XX.
• Read immo data for Audi BCM2 encrypted
• ADVANCED KEY PROGRAMMING ACCESSORIES
• Add Key for MQB-V850/RH850 Series (No lift pin, no cut wire)
• READ IMMO DATA FROM MQB-V850/RH850 DASHBOARD
• replaces the APB130 adapter
• Supports latest Nissan, Ford read pin via dump (NOTE: Renault read pin from HFM dump function is gone)
• IM508/IM608 XP400 Pro will calculate MQB AKL synchronized data (need to get CS from instrument cluster, ECM, Gearbox and ELV)
• New! Now Autel will decode V-A-G MQB locked ELV 3Q0905861 and 5Q0905861 16 bytes via APB131

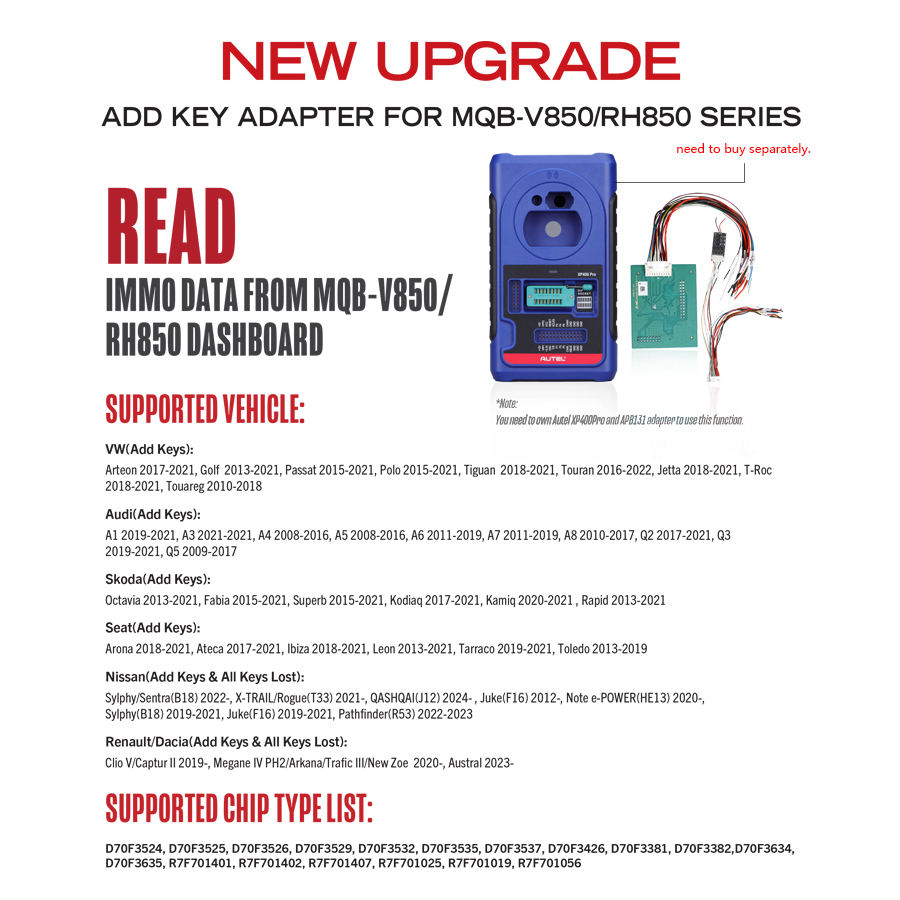

SUPPORTED VEHICLES:

VW (Add Keys):
Arteon 2017-2021, Golf  2013-2021, Passat 2015-2021, Polo 2015-2021, Tiguan  2018-2021, Touran 2016-2022, Jetta 2018-2021, T-Roc 2018-2021, Touareg 2010-2018

Audi (Add Keys):
A1 2019-2021, A3 2021-2021, A4 2008-2016, A5 2008-2016, A6 2011-2019, A7 2011-2019, A8 2010-2017, Q2 2017-2021, Q3 2019-2021, Q5 2009-2017

Skoda (Add Keys):
Octavia 2013-2021, Fabia 2015-2021, Superb 2015-2021, Kodiaq 2017-2021, Kamiq 2020-2021 , Rapid 2013-2021

Seat (Add Keys):
Arona 2018-2021, Ateca 2017-2021, Ibiza 2018-2021, Leon 2013-2021, Tarraco 2019-2021, Toledo 2013-2019

VAG RH850 Menu: Expert selection--Mqb instrument cluster--RH850 locked--R7Fxxxxxx.

Nissan (Add Keys & All Keys Lost):
Sylphy/Sentra(B18) 2022-, X-TRAIL/Rogue(T33) 2021-, QASHQAI(J12) 2024- , Juke(F16) 2012-, Note e-POWER(HE13) 2020-, Sylphy(B18) 2019-2021, Juke(F16) 2019-2021, Pathfinder(R53) 2022-2023

Ford (Add Keys & All Keys Lost):
Ford: 2021- F-150, Bronco, Mustang Mach-E, Focus, Mondeo
Linclon: 2021- Nautilus 2022- Navigator, 2023- Corsair

SUPPORTED CHIP TYPE LIST:
D70F3524, D70F3525, D70F3526, D70F3529, D70F3532, D70F3535, D70F3537, D70F3426, D70F3381, D70F3382, D70F3634, D70F3635
R7F701401, R7F701402, R7F701407, R7F701025, R7F701019, R7F701025, R7F701019, R7F701056

Supported Chip Models for VW and Audi: D70F3524, D70F3525, D70F3526, D70F3529, D70F3532, D70F3535, D70F3537, D70F3426, D70F3381, D70F3382, D70F3634, D70F3635, R7F701401, R7F701402
Supported Chip Models for Nissan: R7F701025, R7F701019

*Note:
You need to own Autel XP400Pro & APB131 adapter to use this function.
Renault and Dacia read pin from HFM dump function was removed. (Jan. 2025)

APB131 Instruction: Read VAG MQB V850 IMMO Data with Autel IM508 and APB131

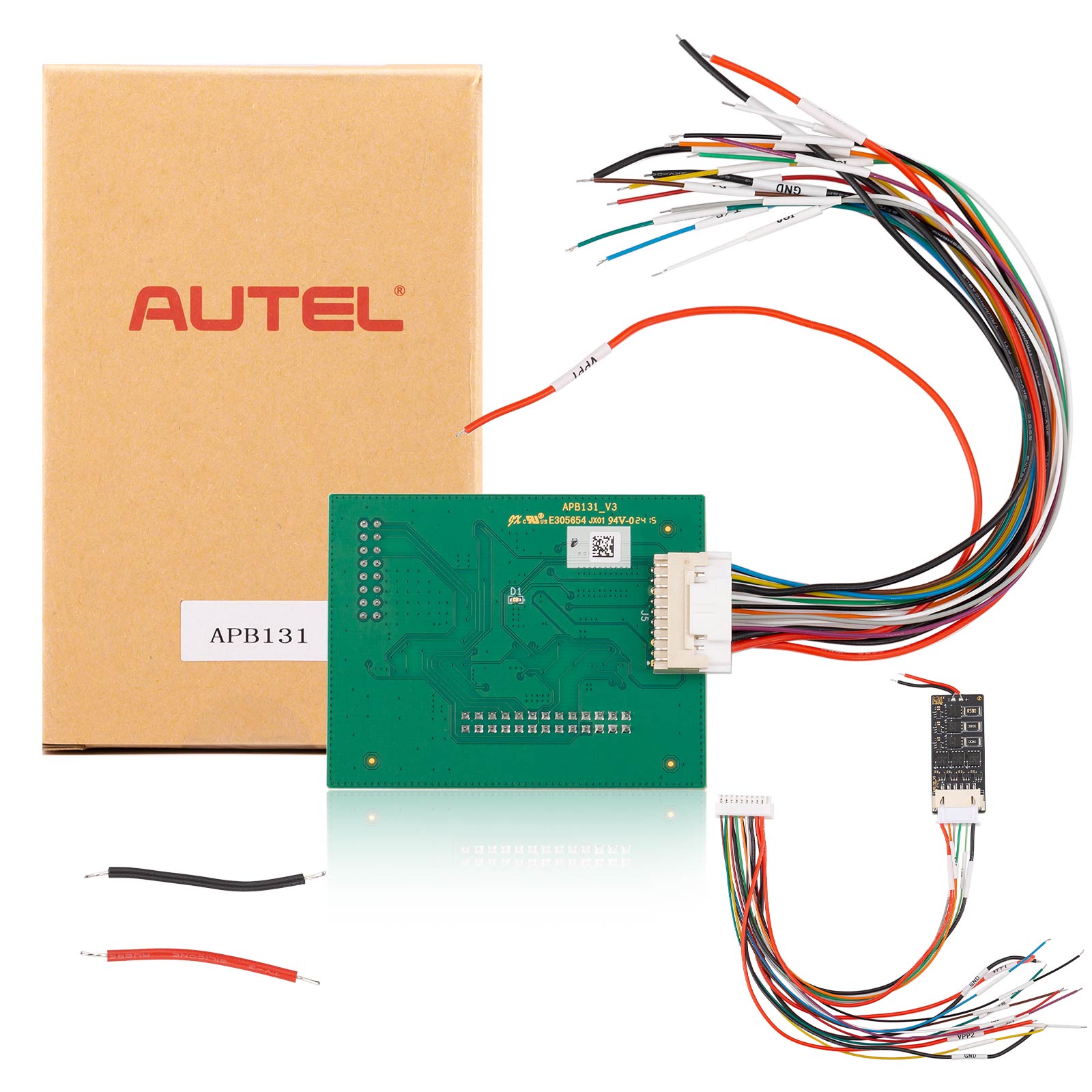

Package List:
1pc x APB131 adapter
1pc x AUTEL APB300 Key Programmer
1pc x Terminal wire
1pc x quick guide
1pc x USB A to USB C cable
1pc x 4-button MLB universal smart key board (IKEYAU004AL)
1pc x 4-button MLB universal smart key board (IKEYAU014AL)
